Composed of a combination of rigid and flexible circuit boards that are permanently connected to one another.

The main use of Rigid-Flex circuit boards offers optimum solutions for difficult, limited space conditions. This technology offers the possibility of a secure connection of device components with the assurance of polarity and contact stability, as well as a reduction in plug and connector components.

Additional advantages of Rigid-Flex circuit boards are dynamic and mechanical stability, the resulting 3-dimensional freedom of design, simplified installation, space savings, and maintenance of uniform electrical characteristics. As well as the use of Rigid-Flex circuit boards can reduce the total cost of the final product.

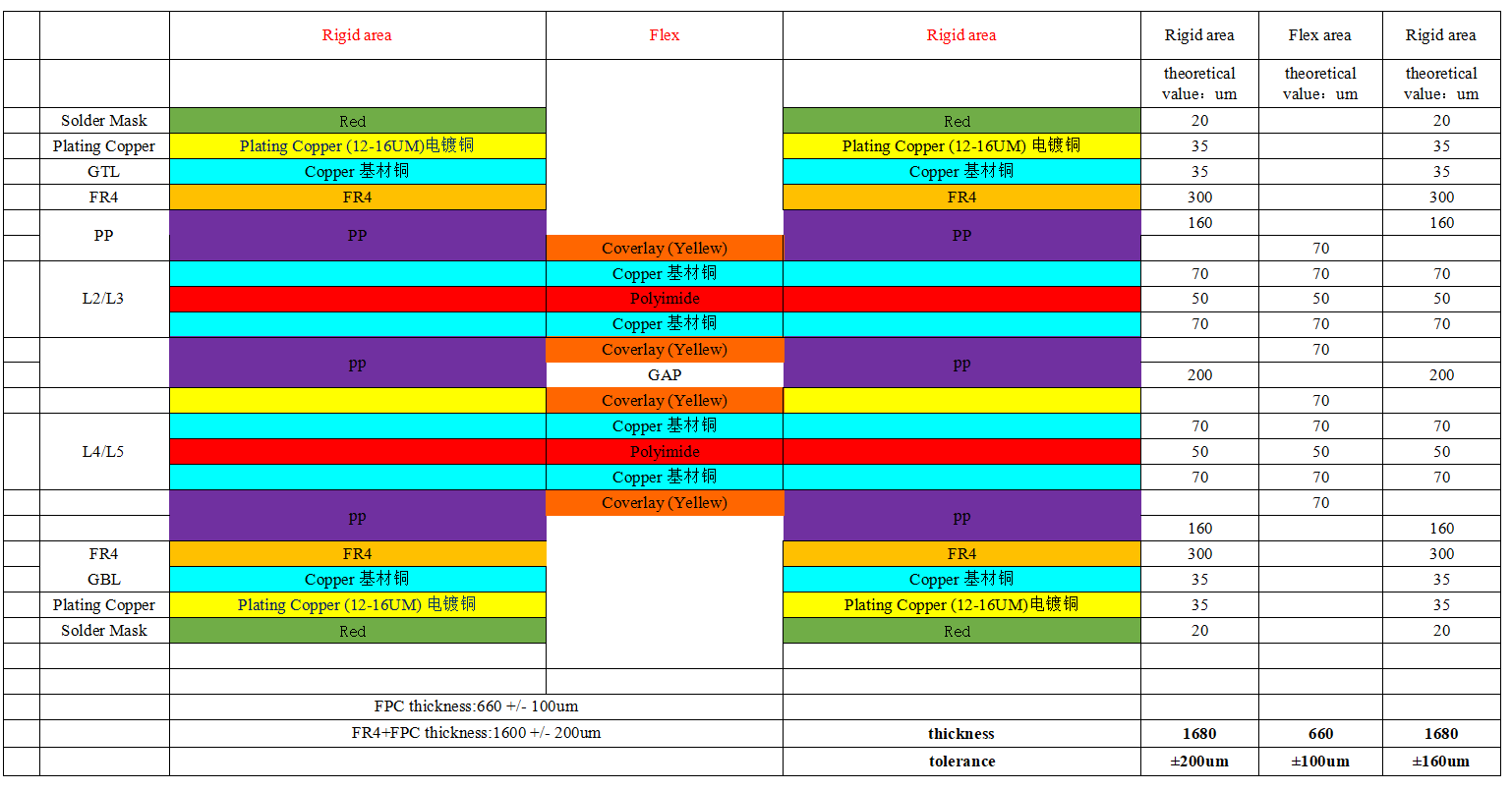

6 Layer Rigid-Flex PCB stackup
