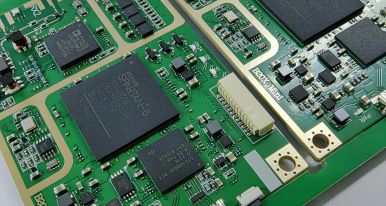

SMT Assembly

SMT Assembly

SMT Assembly Looking for a High-Quality Rigid-flex PCB and Flex PCB assembly manufacturer? DOUBLEPORT provide PCB assembly services for customers in China and abroad with cost-effective prices. Surface mount technology (SMT) is a method for constructing electronic circuits in which the components are mounted directly onto the surface of flex PCB boards. This technique allows for smaller, more compact, and higher-performance electronic assemblies compared to Through-Hole Technology (THT).
​Flexible Heater

​Flexible Heater

Flexible Heater are the most basic and most widely used of the flexible heater family. They consist of a “single” conductive layer and two insulating layers. These circuits are the thinnest of the flexible heater family with an overall thickness range of 3.7 (.0037”) to 5.4 (.0054”) mils typically. That makes them the most flexible heater construction by definition and therefore they are commonly used in all known heater applications from microprocessor heating to heated mirrors in automobiles. All component types can be attached to single sided heaters and current carrying capabilities of signal traces range from a few milliamps to several amps.

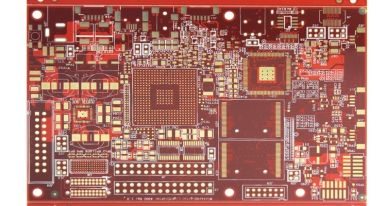

Multi-Layer Circuit Boards

Multi-Layer Circuit Boards

Multi‐layered printed circuit boards are a very common member of the printed circuit board family. They consist of three – twenty conductive layers and one layer of solder mask insulating layer on the top and bottom. Standard overall thicknesses range from .031” ‐ .125”.

Double Sided PCB

Double Sided PCB

Double sided printed circuit boards are the most widely used of the PCB family. They consist of two (“double”) conductive layers and one layer of solder mask insulating layer on the top and bottom. Standard overall thicknesses range from .031” ‐ .125”. This makes them useful for most electronic applications such as control boards and user interface boards. All component types can be attached to double sided circuits and current carrying capabilities of signal traces range from a few milliamps to several amps. We understand the hassle of delays and product returns, that’s why we ensure on time delivery and a 99% quality ratio across all orders for over 11 years.

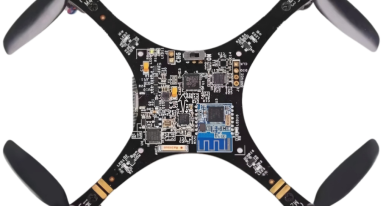

Single Sided PCB

Single Sided PCB

Single sided printed circuit boards are the most basic of the printed circuit boards family. They consist of a “single” conductive layer and one layer of solder mask insulating layer on the top and the fiberglass material on the bottom. Standard overall thicknesses range from .031” ‐ .125”.

Multi layer Flexible PCB

Multi layer Flexible PCB

Multilayer Flex Printing Circuits Board work well in applications involving denser assemblies. Designs typically consist of 2-8 conductive layers and the appropriate number of insulating layers: one between each conductive layer and two outside layers on top and bottom. Overall thickness ranges from 9.1 (.0091”) to 23.5 (.0235”) mils in most designs. With a more rigid construction compared to other types of flex circuits, many of our customers select multilayer circuits for their thickness characteristics. When required, these circuits can be designed with more flexibility for use in complex circuit assemblies. Controlled impedance and EMI-shielded designs are also achievable with this type of circuit.
