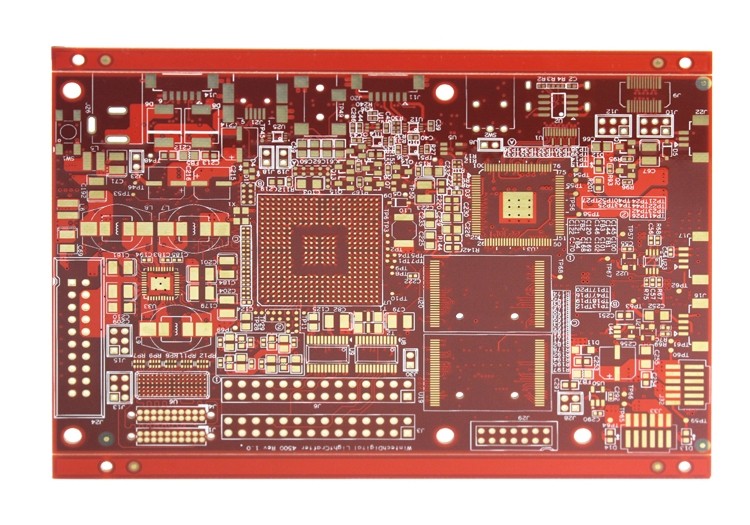

Multi-Layer Circuit Boards

Multi‐layered Printed Circuit Boards are a very common member of the printed circuit board family.

They consist of three – twenty conductive layers and one layer of solder mask insulating layer on the top and bottom. Standard overall thicknesses range from .031” ‐ .125”. The capability to provide EMI shielding layers makes them useful for the most complex electronic applications such as mother boards and radio frequency (RF) boards. All component types can be attached to multi‐layered circuits and current carrying capabilities of signal traces range from a few milliamps to several amps.

We understand the hassle of delays and product returns, that’s why we ensure on time delivery and a 99% quality ratio across all orders for over 11 years.
